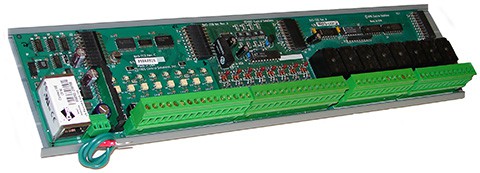

BAS-700 Modbus web server with modular I/O

Control Solutions' BAS-700 series brings the power of the i.CanDoIt Modbus web server to a modular bare board form factor. This system is most cost effective for high point counts that exceed the capacity of the AddMe or ValuPoint family.

The BAS-700 can also be used as a Modbus TCP slave I/O device or for SNMP input/output. Access I/O points as Modbus holding registers. Read and write inputs and outputs using SNMP Get and Set.

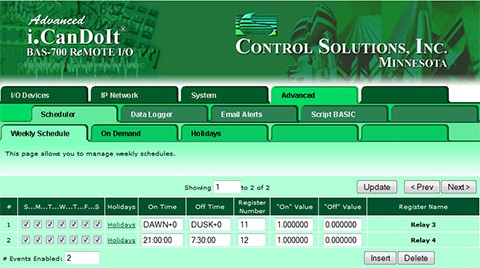

Screen shot from BAS-700 Modbus web server

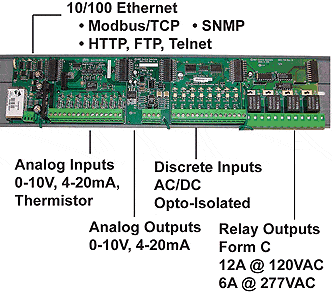

BAS-700 i.CanDoIt®
Modular I/O with Embedded Web Server

• Powerful web features
• Input point count from 4 to 192
• Output point count from 2 to 64
• Any I/O mix of up to 8 I/O boards
• Mix analog and discrete, input & output

BAS-700 i.CanDoIt® Web Server

Basic BAS-700
• Modbus & SNMP access to I/O
• Simple logic & alarms
• Rule based event reporting, SNMP v2c traps
• Modbus TCP client & server
• Script Basic

Advanced BAS-700
• Time/date scheduler
• Astronomical clock
• Data logger, event logger, email log file delivery
• Email event notifications
• User HTML wrapper
• Web client data logging & event reporting

Pricing and Buy Online provided module by module upon expanding the applicable sections below.



Control Solutions created the BAS-700 building block approach to let you create your own Modbus or SNMP I/O node. You simply plug together the modules you need! Packaging is simple and economical with cut-to-size snap track. Creating a custom system is easy and economical with the BAS-700 series.

BAS-700 Modbus and SNMP web server with modular I/O

Configuration is done via the web pages. Configuration is saved in the internal Flash file system, and may be exported for backup or for duplicating the configuration in another device.

Screen shot from BAS-700 Modbus web server

Click on the link below to view a demo copy of the entire Web UI in the BAS-700.

 BAS-700 Demo Web

BAS-700 Basic Features Provided by BAS-7050

• Embedded web server
• Configurable physical I/O
• Simple logic & math using "fill in the blank" templates
• Templates for threshold & response "rules"
• Outputs linked to inputs
• Outputs linked to logic applied to inputs
• SNMP agent (get/set registers & I/O)
• SNMP v2c traps based on threshold rules
• Modbus TCP client & server (master & slave)
• Embedded Script Basic compiler/interpreter
• Password protected web interface
• User HTML wrapper with CGI processing
• FTP upload of XML configuration file

Additional Advanced BAS-700 Features Provided by BAS-7050-RT

• Battery backed real time clock
• Time/date scheduler, virtual calendar
• Astronomical clock
• Event logging to CSV file
• Periodic data logging to CSV file
• Scheduler driven data logging
• Data trending with logging & action rules
• On time tracking (e.g. compressor run time)
• Email delivery of data log files
• Email event notification
• Notification acknowledgement via email
• DNS support
• Dynamic DNS support
• Web client for server driven operation
• FTP download of data & event log files

The BAS-7050 processor module features a high powered RISC processor with Ethernet network capability. This brings the entire series of BAS-700 I/O modules to Ethernet and the Internet. You can mix and match a variety of point counts and types for your own custom Ethernet I/O node. Support is available for SNMP, HTTP, FTP, email, and other Internet applications, plus network support including DNS, DHCP and BOOTP.

Control Solutions provides an SNMP agent, and both client and server capability for Modbus/TCP access to BAS-700 series I/O modules. Whether you need Modbus I/O or SNMP I/O, the BAS-700 series is your answer for configurable Ethernet I/O nodes.

The BAS-7050 now comes with i.CanDoIt®, adding a web interface for configuration and monitoring. The enhanced real time option adds data logging, scheduling, email alerts and data log delivery, and dynamic DNS support. Simple programming can be done through rule templates. The BAS-7050 is freely programmable using the built-in Script BASIC compiler/interpreter.

BAS-7050 Processor Module

BAS-7050

• i.CanDoIt® Basic Firmware
• High Performance 32-bit RISC Processor (ARM 7)
• 2MB Flash
• 8MB RAM
• 10/100 BaseT Ethernet port
• I/O expansion bus supports 8 BAS-700 series I/O modules
• 2 Amp power supply, 10-30VDC or 12-24VAC input
• Snap track mounting, 3.25"H x 2.00"W

Order code: BAS7050
List price: $529.00
Your price: $419.00
Log in for Wholesale

 Buy BAS7050 Online Now!

BAS-7050-RT Processor Module

BAS-7050-RT

• All Basic BAS-7050 features, Plus...
• Advanced i.CanDoIt® Real Time Firmware
• 4MB Flash
• Battery Backed Real Time Clock

Order code: BAS7050RT
List price: $599.00
Your price: $479.00
Log in for Wholesale

 Buy BAS7050RT Online Now!

The BAS-710 series of Discrete Input modules are configurable for high or low ranges of AC or DC voltages. Your BAS-700 series system can be expanded in increments of 4 or 8 discrete input points using these modules. Inputs are individually optically isolated.

The BAS-7124 is the highest density input board in the BAS-710 series, with 24 inputs per module. These inputs are restricted to sensing only contact closure to ground using excitation provided by the BAS-7124. The intended application for this module is sensing contact closures for alarm systems.

The BAS-714/400 Discrete Input Module extends the range of discrete inputs to 400 volts peak (400VDC, 277VAC). The BAS-714/400 is designed to sense on/off conditions in commercial lighting or other higher voltage applications. Inputs are optically isolated.

BAS-714 Disrete Input

BAS-714

• 4 Optically isolated inputs
• Input range high/low selected per channel by jumper
• AC or DC voltage
• Low range down to 5VDC (TTL level)
• High range up to 120VAC (240VAC by special order)
• Status LED on each input
• Plug-in screw terminal block
• Snap track mounting, 3.25"H x 1.70"W

Order code: BAS714
List price: $149.00
Your price: $119.00
Log in for Wholesale

 Buy BAS714 Online Now!

BAS-718 Discete Input

BAS-718

• 8 Optically isolated inputs
• Input range high/low selected per channel by jumper
• AC or DC voltage
• Low range down to 5VDC (TTL level)
• High range up to 120VAC (240VAC by special order)
• Status LED on each input
• Plug-in screw terminal block
• Snap track mounting, 3.25"H x 3.25"W

Order code: BAS718
List price: $249.00
Your price: $195.00
Log in for Wholesale

 Buy BAS718 Online Now!

BAS-7124 Disrete Input

BAS-7124

• 24 Inputs sense contact closure to ground
• Each input point provides its own excitation (5V @ 1mA)
• Miniature plug-in screw terminal blocks
• Snap track mounting, 3.25"H x 2.10"W

Order code: BAS7124
List price: $259.00
Your price: $209.00
Log in for Wholesale

 Buy BAS7124 Online Now!

BAS-714/400 Discrete Input

BAS-714/400

• 4 Inputs, fixed high range
• Optically isolated per channel, AC or DC voltage
• Status LED's on each input
• Input range to 400Vpeak, 277VAC
• Plug-in screw terminal block
• Snap track mounting, 3.25"H x 3.00"W

Order code: BAS714400
List price: $149.00
Your price: $119.00
Log in for Wholesale

 Buy BAS714400 Online Now!

The BAS-720 series of Discrete Output modules are designed to handle a wide range of requirements, including AC and DC loads, both high and low voltages, and even lighting system requirements with the 277V ballast rating of the relays used. Relays and plug-in terminal blocks are rated at 12A. NO and NC both provided.

The BAS-728 is designed to provide higher density discrete outputs, and adds the feature of socketed fuses on-board. The common terminal of the relay contains the fuse, thus both Normally Open and Normally Closed contacts are protected.

The BAS-728/F provides the highest density output module in the BAS-720 series. This module is useful for interfacing to contact inputs of other equipment, or for driving pilot relays or indicators. Each FET is ESD protected, and includes an internal diode protecting it from inductive loads.

BAS-722 Discrete Output

BAS-722

• 2 Outputs
• Dry contact Form C relays, 3 terminals per I/O point
• 12A load @28VDC or 120VAC
• 6A load @240VAC
• 1500W load with 277V Ballast
• Status LED on each output
• HOA switch for manual override of each output
• Plug-in screw terminal block
• Snap track mounting, 3.25"H x 1.80"W

Order code: BAS722
List price: $145.00
Your price: $115.00
Log in for Wholesale

 Buy BAS722 Online Now!

BAS-724 Discrete Output

BAS-724

• 4 Outputs
• Dry contact Form C relays, 3 terminals per I/O point
• 12A load @28VDC or 120VAC
• 6A load @240VAC
• 1500W load with 277V Ballast
• Status LED on each output
• HOA switch for manual override of each output
• Plug-in screw terminal block
• Snap track mounting, 3.25"H x 3.60"W

Order code: BAS724
List price: $199.00
Your price: $159.00
Log in for Wholesale

 Buy BAS724 Online Now!

BAS-728 Discrete Output

BAS-728

• 8 Outputs
• Dry contact Form C relays, 3 terminals per I/O point
• 5A load @28VDC or 120VAC
• Status LED on each output
• Socketed fuse per output (5A fuse)
• Plug-in screw terminal block
• Snap track mounting, 3.25"H x 5.55"W

Order code: BAS728
List price: $310.00
Your price: $245.00
Log in for Wholesale

 Buy BAS728 Online Now!

BAS-728/F Discrete Output

BAS-728/F

• 8 Outputs
• Open Drain FET Output
• 1A load @30VDC
• Status LED on each output
• Thermal & current overload protected
• ESD protected
• Plug-in screw terminal block
• Snap track mounting, 3.25"H x 1.80"W x 3.65"W

Order code: BAS728F
List price: $199.00
Your price: $159.00
Log in for Wholesale

 Buy BAS728F Online Now!

The BAS-730 series of Analog Input modules are configurable to accommodate 0-10VDC, 4-20mA or 10K Thermistor inputs, with each channel individually configurable.

The BAS-738/3 is useful for measurements where common floats at some voltage other than ground. The BAS-738/3 has socketed range resistors and provides isolated inputs (isolated channels to system, non-isolated channel to channel). The BAS-738/3 is useful where common floats at some level other than system ground, and can be used to take measurements in -48VDC telecom applications.

The BAS-742 Analog Output module is designed to provide the common 0-10VDC or 4-20mA output levels for process control. The output types are individually configurable per channel.

BAS-734 Analog Input

BAS-734

• 4 Inputs
• 12-bit resolution
• Input ranges: 0-10VDC, 4-20mA, 10K type 3 Thermistor
• Channels individually configurable via jumper blocks
• Optional socketed range resistors voltage inputs to 60VDC
• Plug-in screw terminal block
• Snap track mounting, 3.25"H x 1.75"W

Order code: BAS734
List price: $229.00
Your price: $179.00
Log in for Wholesale

 Buy BAS734 Online Now!

BAS-738 Analog Input

BAS-738

• 8 Inputs
• 12-bit resolution
• Input ranges: 0-10VDC, 4-20mA, 10K type 3 Thermistor
• Channels individually configurable via jumper blocks
• Optional socketed range resistors voltage inputs to 60VDC
• Plug-in screw terminal block
• Snap track mounting, 3.25"H x 3.30"W

Order code: BAS7380
List price: $289.00
Your price: $229.00
Log in for Wholesale

 Buy BAS7380 Online Now!

BAS-738/3 Analog Input

BAS-738/3

• 8 Inputs, optically isolated A/D, on-board DC/DC converter
• 12-bit resolution on ranges of 0-10VDC, 4-20mA, Thermistor
• Same as BAS-738, with isolation added
• Also accepts bipolar input -10V to +10VDC
• Snap track mounting, 3.25"H x 3.30"W

Order code: BAS7383
List price: $429.00
Your price: $349.00
Log in for Wholesale

 Buy BAS7383 Online Now!

BAS-742 Analog Output

BAS-742

• 2 Outputs individually configurable
• Jumper configurable for 0-10VDC or 4-20mA output ranges
• 4-20mA output drives 250 load max.
• 8-bit DAC resolution
• Jumper selectable potentiometer for manual override of outputs
• Plug-in screw terminal block
• Snap track mounting, 3.25"H x 2.00"W

Order code: BAS742
List price: $179.00
Your price: $129.00
Log in for Wholesale

 Buy BAS742 Online Now!

Snap track is a commonly used method of mounting circuit boards inside control panels. This method is most commonly found in building automation and facility management. Because it can be cut to any length needed, it is especially suited to the BAS-700 series with its endless possibilities for configuration variations. Snap track comes in standard 4 foot lengths. Control Solutions also stocks 2 foot and 1 foot lengths, and will custom cut (down from 48 inches) to any desired length.

Use the BAS-EXT Track Adaptor to expand your panel mounting options. The adapter allows back to back track mounting, or mounting parallel tracks one above the other that electrically become one. (Note: Polarity matters. Do not use if you do not understand ribbon cable polarity. You will damage circuit boards with incorrect installation.)

The rack mount option for the BAS-700 series provides room for a smaller system, occupying less space. A power-on indicator is included on the front panel. (Circuit boards excluded.) The rack kit is intended for prototype use. If you are interested in a production design, please contact sales@csimn.com to discuss design details for a quote.

BAS-700 Snap Track

BAS-700 Snap Track Mounting

• Low cost substitute for DIN rail mounting
• Simply screw track to panel or enclosure
• Simply snap in boards and slide together
• Cut track to length desired
• All modules 3.25" high
• All wiring done via plug-in screw terminals at bottom of track
• Expansion bus handles up to 8 I/O modules per processor
• Nodes can be virtually any size
• Bus includes power, reset, decoded selects, SPI bus
• Bus accepts custom OEM and third-party modules

Snap track is sold as a convenience to Control Solutions customers who are purchasing BAS-700 series boards with the track. If you are looking for snap track alone for your own applications not related to BAS-700, you may purchase it directly at www.beyondcomponents.com.

Order codes: BASTK12, BASTK24
List prices: $6.50, $13.00
Your prices: $5.00, $10.00
Log in for Wholesale

 Buy BASTK12 Online Now!

 Buy BASTK24 Online Now!

BAS-700 Track Extender

BAS-EXT Track Adapter

• Provides ribbon cable connector to break system into 2 tracks
• BAS-EXT/2 includes 2" cable, BAS-EXT/6 includes 6" cable
• Use 2" cable for back to back tracks
• Use 6" cable for over-under tracks
• Snap track mounting, 3.25"H x 0.70"W

Order codes: BASEXT2 and BASEXT6
List prices: $24.00 and $32.00
Your prices: $19.00 and $25.00
Log in for Wholesale

 Buy BASEXT2 Online Now!

 Buy BASEXT6 Online Now!

BAS-700 1U Rack Mount

BAS-700 Rack Mount - 1U Unfinished

• 19-inch 1U rack for BAS-700 snap tracks
• Natural aluminum construction
• Front panel can be customized
• Useable track length 13" (included)

Order code: BASR1U
List price: $239.00
Your price: $189.00
Log in for Wholesale

 Buy BASR1U Online Now!
