Control Solutions' product line includes AddMe® and ValuPoint® series Programmable I/O devices which are ideal for expansion of virtually any distributed building automation control system. These devices can be used as slave I/O or programmable controllers.

The ValuPoint platform provides a significant leap in economy for programmable controllers. ValuPoint was designed from the ground up with BACnet in mind, and a Modbus version is also available.

The AddMe series is Control Solutions' original line of general purpose programmable I/O devices that have a long history as work horses.

Programmable I/O is also available for BACnet IP, Modbus TCP, and SNMP. These are found in the Embedded Servers category.


Programmable I/O for BACnet MS/TP

VP4-0630 Programmable I/O for BACnet MS/TP

ValuPoint® Model VP4-0630 low cost programmable I/O for BACnet MS/TP is a BACnet Application Specific Controller (B-ASC) that includes user programmable control, 2 analog/universal inputs, 2 discrete inputs, and 2 relay outputs. VP4-0630 also includes a BACnet client for interface with other MS/TP devices. All I/O points are accessible as standard BACnet objects. The VP4-0630 includes live debug support for the i.CanDrawIt® graphical programming tool.

Learn more...

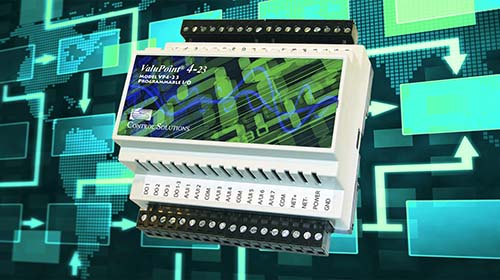

VP4-2330 Programmable I/O for BACnet MS/TP

ValuPoint® Model VP4-2330 programmable I/O for BACnet MS/TP is a BACnet Application Specific Controller (B-ASC) that includes user programmable control, 14 analog/universal inputs, 3 analog outputs, and 6 relay outputs. VP4-2330 also includes a BACnet client for interface with other MS/TP devices. All I/O points are accessible as standard BACnet objects. The VP4-2330 includes live debug support for the i.CanDrawIt® graphical programming tool.

Learn more...

AM3-SB Programmable I/O for BACnet MS/TP

AddMe III Model AM3-SB programmable I/O for BACnet MS/TP is a BACnet Application Specific Controller (B-ASC) that includes 18 analog/universal inputs, 4 analog outputs, 8 discrete (Form A relay) outputs with HOA switches, and 2 pulse inputs. All I/O points are accessible as standard BACnet objects.

Learn more...

AMJR-SB Programmable I/O for BACnet MS/TP

AddMe Lite Model AMJR-SB programmable I/O for BACnet MS/TP is a BACnet Application Specific Controller (B-ASC) that includes 12 analog/universal inputs an 2 discrete (open drain FET) outputs. All I/O points are accessible as standard BACnet objects.

Learn more...


Programmable I/O for Modbus RTU

VP4-0610 Programmable I/O for Modbus RTU

ValuPoint® Model VP4-0610 low cost programmable I/O for Modbus RTU provides slave I/O, includes user programmable control, 2 analog/universal inputs, 2 discrete inputs, and 2 relay outputs. VP4-0610 can operate as Modbus master or slave, with all I/O accessible as holding registers and/or coils. The VP4-0610 includes live debug support for the i.CanDrawIt® graphical programming tool.

Learn more...

VP4-2310 Programmable I/O for Modbus RTU

ValuPoint® Model VP4-2310 programmable I/O for Modbus RTU provides slave I/O, includes user programmable control, 14 analog/universal inputs, 3 analog outputs, and 6 relay outputs. VP4-2310 can operate as Modbus master or slave, with all I/O accessible as holding registers and/or coils. The VP4-2310 includes live debug support for the i.CanDrawIt® graphical programming tool.

Learn more...

VP4-2810 Programmable I/O for Modbus RTU

ValuPoint® Model VP4-2810 programmable I/O for Modbus RTU provides slave I/O, includes user programmable control, 12 discrete inputs, and 16 discrete outputs. VP4-2810 can operate as Modbus master or slave, with all I/O accessible as holding registers and/or coils. The VP4-2810 includes live debug support for the i.CanDrawIt® graphical programming tool.

Learn more...

AM3-SM Programmable I/O for Modbus RTU

AddMe III Model AM3-SM programmable I/O for Modbus RTU provides slave I/O, includes user programmable control, 18 analog/universal inputs, 4 analog outputs, 8 discrete (Form A relay) outputs with HOA switches, and 2 pulse inputs. AM3-SM operates as Modbus slave, with all I/O accessible as holding registers and/or coils.

Learn more...

AMJR-SM Programmable I/O for Modbus RTU

AddMe Lite Model AMJR-SM programmable I/O for Modbus RTU provides slave I/O, includes user programmable control, 12 analog/universal inputs an 2 discrete (open drain FET) outputs. AMJR-SM operates as Modbus slave, with all I/O accessible as holding registers and/or coils.

Learn more...

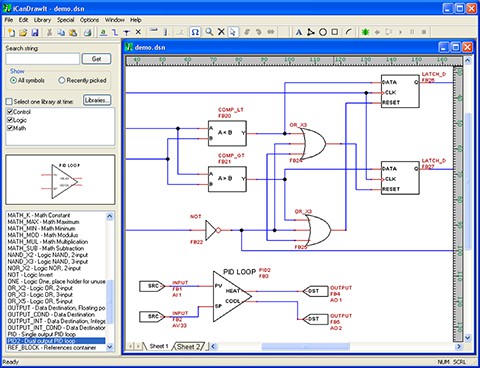

The i.CanDrawIt® visual programming tool is available at no additional cost with every ValuPoint controller from Control Solutions. i.CanDrawIt works just like an electrical schematic CAD program, except you draw control programs that look like circuits. The resulting software will function like the circuit you draw. i.CanDrawIt includes visual program simulation as well as visual live debugging where supported by the target device.

•Draw control programs
•Electrical CAD look and feel
•Ladder style, free form logic, or hybrid
•Compile code from drawings
•Simulate functions block by block
•Inspect or change variables, registers, objects
•Create new function blocks
•Library source code included
