IB-100 Modbus web server

Model IB-100 Internet I/O Board includes the i.CanDoIt® Modbus web server, with alarm monitoring and email notification, plus Script Basic. IB-100 hardware includes 8 universal inputs and 2 discrete output, plus Modbus TCP client and server and SNMP agent.

The IB-100 can also be used as a Modbus TCP slave I/O device or for SNMP input/output. Access I/O points as Modbus holding registers. Read and write inputs and outputs using SNMP Get and Set.

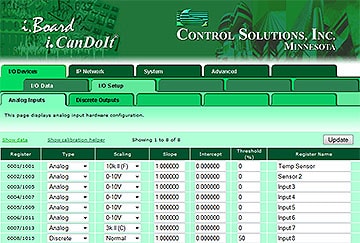

Screen shot from IB-110 Modbus web server

Internet I/O Board with i.CanDoIt®
Model IB-100 Embedded Web Server

• 8 Analog/Universal Inputs
• 2 Discrete Outputs
• Modbus TCP Client and Server
• SNMP Agent with Traps
• Programmable with Script Basic

Compare these features to other Basic Controllers

• Built-in web server
• Onboard Basic compiler
• 4MB Flash, 2MB available for user files
• 8MB RAM
• 1500 Modbus registers predefined
• 32-bit ARM processor
• Email client built in
• Alarm triggered emails
• Modbus TCP client and server
• SNMP agent, programmable traps

Model IB-100 Embedded Web Server

Order code: IB100
List price: $595.00
Your price: $475.00
Log in for Wholesale

 Buy IB100 Online Now!



The goal of i.CanDoIt® is to provide a simple and cost effective facility management and remote monitoring solution suitable for use in small sites. The i.CanDoIt® Modbus web server includes template or rule based alarm processing with email notification and/or I/O activation in response to events. The resulting register manipulation may generate network communication with remote devices, control local I/O, or change setpoints. The i.CanDoIt® is programmable, even though it is rather powerful without programming.

The IB-100 Internet I/O board (formerly i.Board) is Control Solutions' answer to customers who said, "We like your products, but can we get something in a smaller, low cost package?" So for all those applications where you need the sophistication of an Internet Appliance but only have a handful of points to monitor, the IB-100 Internet I/O Board is the answer.

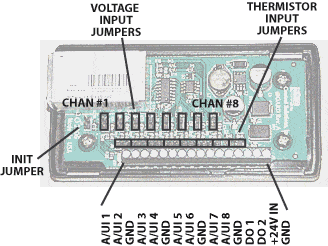

Control Solutions’ IB-100 Internet I/O Board with i.CanDoIt® features 8 inputs which accept analog input from thermistors or 0-10V sensors, or discrete input from dry contact switches. The IB-100 also provides 2 discrete outputs which can sink 1A at 24VDC.

Input data is presented in scaled integer and floating point format. Linearization tables are provided for 10K and 20K type II, III, and IV thermistors on analog inputs. Input scaling is configured in web pages served by the internal web server.

The IB-100 also makes an economical Modbus TCP slave I/O device. Read and write physical inputs and outputs as holding registers. Use the server map to create a virtual Modbus device that lets you access I/O points as any type of register, including Modbus coil.

The IB-100 can be used as an SNMP I/O device. Read physical inputs using SNMP Get. Write physical outputs using SNMP Set. Set up SNMP Traps to give you notifications when physical inputs exceed your given threshold.

The i.CanDoIt® Modbus web server includes a large number of predefined web pages for configuration and monitoring. Support is also provided for user defined web pages using HTML and JavaScript. Any of the data registers are accessible to user defined web pages via internal CGI processing of user tags. This allows a fully customized look and feel for the system.

Configuration is done via the web pages. Configuration is saved in the internal Flash file system, and may be exported for backup or for duplicating the configuration in another device.

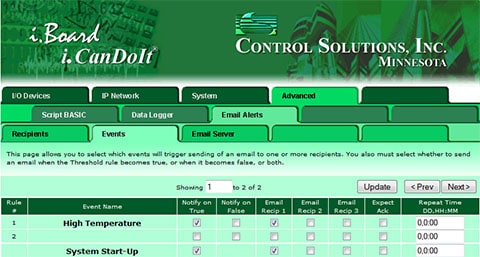

Screen shot from IB-100 Modbus web server

Click on the link below to view a demo copy of the entire Web UI in the IB-100 (formerly iBoard).

 IB-100 Demo Web



IB-100 Features

• 8 Analog/universal inputs
    • 0-10VDC, Thermistor, dry contact
    • Jumper selectable input type
    • 10-bit resolution
• 2 Discrete Outputs
    • Open drain FET, 1A @ 24VDC current sink
• User programmable using Script Basic
• Basic access to Modbus registers
• Modbus TCP client and server
• 10/100BaseT Ethernet
• Event notification via email & SNMP traps
• Web interface including user HTML wrapper
• Powered by 24VDC (only)
• Power Consumption:
    • 0.15A @ 24VDC max.
• 38mm H x 52mm W x 103mm D
• -40C to +70C, 5%-95% RH non-condensing
• Certifications: FCC, CE




• Modbus Tutorial
Introduction to Modbus, including function codes, exception codes, register numbering.
