Control Solutions’ Model IB-110 i.CanDoIt® Web Enabled I/O Programmable Controller is a low cost embedded web server with 8 inputs and Modbus RTU, template or rule based alarm monitoring and email notification. The embedded web server includes many predefined pages, but you can create your own HTML pages and forms to customize the server for your application. In addition to web access, you can access I/O points as Modbus TCP registers or SNMP MIB variables. The IB-110 is programmable with the Script Basic.

Feature Highlights
• 8 Analog/Universal Inputs, 10-bit, Soft Configured for 0-10VDC, Thermistor, or Dry Contact
• Modbus RTU Master
• Modbus TCP Client and Server
• SNMP Agent

IB-110 Web Enabled I/O includes many pre-programmed web pages plus user defined web pages
IB-110 Modbus web server

Model IB-110 Embedded Web Server

Order code: IB110
List price: $560.00
Your price: $445.00
Log in for Wholesale

 Buy IB110 Online Now!



The goal of i.CanDoIt® is to provide a simple and cost effective facility management and remote monitoring solution suitable for use in small sites. The i.CanDoIt® Modbus web server includes template or rule based alarm processing with email notification and/or I/O activation in response to events. The resulting register manipulation may generate network communication with remote devices, control local I/O, or change setpoints. The i.CanDoIt® is programmable, even though it is rather powerful without programming.

The IB-110 Internet I/O Board (formerly i.Board2) is the second member of Control Solutions' Internet I/O Board family. For all those applications where you need the sophistication of an Internet Appliance but only have a handful of points to monitor, IB-110 is the answer. Now you can combine the universal inputs of the IB-110 with any variety of I/O that communicates Modbus RTU. Web enable power meters, flow meters, or any other smart sensor that talks Modbus.

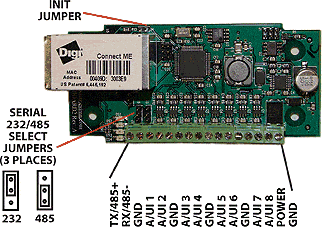

Control Solutions’ IB-110 Internet I/O Board with i.CanDoIt® features 8 inputs which accept analog input from thermistors or 0-10V sensors, or discrete input from dry contact switches. The IB-110 also provides a serial port supporting Modbus RTU over RS-485.

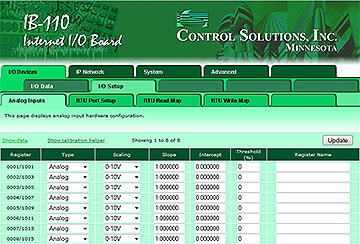

Input data is presented in scaled integer and floating point format. Linearization tables are provided for 10K and 20K type II, III, and IV thermistors on analog inputs. Input scaling is configured in web pages served by the internal web server.

The IB-110 also makes an economical Modbus TCP slave I/O device. Read physical inputs as holding registers. You can also use Modbus TCP to read and write registers that are mapped to the Modbus RTU master, giving you Modbus TCP access to slave Modbus RTU devices.

The IB-110 can be used as an SNMP I/O device. Read physical inputs using SNMP Get. Via the Modbus RTU mapping, using SNMP to Get or Set registers in slave Modbus RTU devices. Set up SNMP Traps to give you notifications when physical inputs or slave Modbus registers exceed your given threshold.

The i.CanDoIt® Modbus web server includes a large number of predefined web pages for configuration and monitoring. Support is also provided for user defined web pages using HTML and JavaScript. Any of the data registers are accessible to user defined web pages via internal CGI processing of user tags. This allows a fully customized look and feel for the system.

Configuration is done via the web pages. Configuration is saved in the internal Flash file system, and may be exported for backup or for duplicating the configuration in another device.

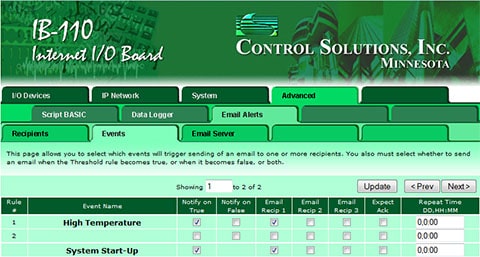

Screen shot from IB-110 Modbus web server

Click on the link below to view a demo copy of the entire Web UI in the IB-110 (formerly iBoard2).

 IB-110 Demo Web



IB-110 Features

• 8 Analog/universal inputs
    • 0-10VDC, Thermistor, dry contact
    • Software selectable input type
    • 10-bit resolution
• Modbus RTU RS-485 master
• User programmable using Script Basic
• Basic access to Modbus registers
• Modbus TCP client and server
• 10/100BaseT Ethernet
• Event notification via email & SNMP traps
• Web interface including user HTML wrapper
• Powered by 10-30VDC or 24VAC 50/60 Hz
• Power Consumption:
    • 0.15A @ 24VDC max.
• 38mm H x 52mm W x 103mm D
• -40C to +70C, 5%-95% RH non-condensing
• Certifications: FCC, CE




• Modbus Tutorial
Introduction to Modbus, including function codes, exception codes, register numbering.
