The Babel Buster MX-73-V2C BACnet Router routes BACnet messages between BACnet IP and BACnet MS/TP networks. The MX-73-V2C BACnet Router can be a learning router or configured router, and includes BBMD support. The MX-73-V2C BACnet Router also provides slave proxy capability to answer to Who-Is messages on behalf of devices that do not support dynamic binding.

Babel Buster MX-73-V2C BACnet Router can also operate as a BACnet to SNMP gateway. The MX-73-V2C provides an SNMP client and server in addition to the BACnet client and server. The MX-73-V2C can be used to connect SNMP devices to a BACnet network.

The Babel Buster MX-73-V2C contains a user defined set of BACnet objects. Those objects are mapped to the gateway’s MIB, each with a unique OID. The gateway’s BACnet client can query other BACnet devices and store those values in the gateway’s local objects. The gateway’s SNMP client can query other SNMP devices and also store those values in the gateway’s local objects. Both clients can also write to other BACnet or SNMP devices. The objects or variables that are to be read or written in other devices are easily configured by the user. At the same time, other BACnet devices can query the local BACnet objects in the gateway, and other SNMP devices can Get/Set objects via the MIB.

BB3-7302 BACnet Router plus SNMP Gateway Functionality

The Babel Buster MX-73-V2C also includes an automatic table walker and flexible trap receiver that fully supports connecting BACnet to a UPS that implements the RFC 1628 MIB for UPS systems.

The MX-73-V2C is an upgrade alternate for BB2-7030-02 offering higher performance at a lower cost. Routing efficiency is improved and gateway capacity increased. The MX-73-V2C also provides a secure (https) web user interface.

Feature Highlights
• BACnet Router, IP to MS/TP
• Configured or learning router
• BBMD support for WAN connectivity
• Slave proxy for static address binding support
• BACnet Client/Server gateway for mapping BACnet objects
• Up to 5,000 BACnet Objects
• BACnet Input, Value, Output objects for Analog, Binary, Multistate
• SNMP client/server
• Up to 1,000 BACnet Objects mapped as MIB variables
• Connect SNMP Devices to BACnet IP or MS/TP Network
• Connect BACnet IP or MS/TP Devices to an SNMP Network
• SNMP v1, v2c Get/Set, automatic table walker
• SNMP trap receiver, trap listener
• SNMP trap sender with user programmable threshold rules
• FCC, CE Mark
• Software Included, No Drivers to Buy

Babel Buster MX-73-V2C BACnet IP to SNMPv2 Gateway

Babel Buster MX-73-V2C BACnet Router plus SNMP Gateway

Order code: MX-73-V2C
List price: $524.00
Retail price: $419.00

 Buy MX-73-V2C Online Now!

 Save Even More
Sign Up for Wholesale



Control Solutions’ Babel Buster MX-73-V2C is a an enhanced BACnet router and gateway with advanced features to support connecting BACnet IP and MS/TP to SNMP v1 and v2c.

The MX-73-V2C as a BACnet Router will route IP to MS/TP and vice versa via its local ports, and supports full router capability for multi-hop internetworks including via NAT WAN routers. Routing is simple to set up. Routing can be used without any other gateway features enabled. Routing can be configured or automatically learned.

The MX-73-V2C as a BACnet Client/Server Gateway will poll BACnet IP and/or BACnet MS/TP slaves or servers, and retain copies of selected object properties. Upstream clients may then query the MX-73-V2C to receive data originating from multiple devices.

The MX-73-V2C includes an SNMP client that can read and write MIB variables in other SNMP devices. When reading, the remote device’s data will be stored in a local object. When writing, data  will be taken from a local object and sent to the remote SNMP device via SNMP Set.

The MX-73-V2C includes an automatic table walker with multiple algorithms making it suitable for walking the sparse alarm table found in UPS systems implementing RFC 1628. The table walker can easily translate the alarm table into a series of BACnet objects for easy access by a BMS.

The MX-73-V2C includes a trap receiver supporting both v1 and v2c traps. The template driven trap receiver provides multiple algorithms for recognizing traps, and can easily place trap information into BACnet objects.

The MX-73-V2C is itself an SNMP device. Local BACnet objects can be assigned to either of the branches of the local MIB for remote access by other SNMP clients. The local data may be accessed as scaled integer or 32-bit floating point (RFC 6340). An SNMP Get to the MX-73-V2C will read local objects and an SNMP Set will write the local objects. If local objects are mapped via BACnet to write to other BACnet devices, then SNMP Set will result in writing to a BACnet device.

The MX-73-V2C can send v1 or v2c traps based on threshold rules created via templates in the MX-73-V2C’s web UI. When data in the local objects meets the rule criteria, the trap will be sent. Traps can be triggered by reading other BACnet devices or by any other source of local data including the SNMP client.

Babel Buster MX-73-V2C is UPS Friendly

The alarm table in a typical UPS system cannot be directly polled due to the fact that alarm table entries are only present while alarms are present, and attempts to poll the alarm data with no alarms present will result in errors. The table walker in the MX-73-V2C has the intelligence to scan the alarm table for alarms, and set BACnet Binary objects to Active when alarms are found, and automatically clear Binary objects to Inactive after a timeout when not found.

In addition to walking the alarm table of a UPS, the trap receiver in the MX-73-V2C can effectively translate SNMP Traps into BACnet COV notifications. The combination of trap receiver and BACnet client also means SNMP Traps can result in writing status information to objects in other BACnet devices

The BB3-73-V2C includes its own internal web server that provides a web based user interface for configuring the MX-73-V2C. Configuration is done using simple templates, and each web page has an online help section at the bottom.

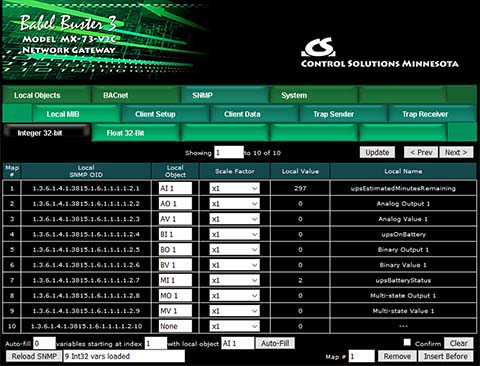

Screen shot from BB3-7302-V2C BACnet Router plus SNMP Gateway

Click the link below to view a demo copy of the entire Web UI in the MX-73-V2C.

 MX-73-V2C Demo Web




MX-73-V2C Features

• BACnet IP to MS/TP Router
• Configured or learning, I-Am route learning, I-Am-Router route learning
• Slave proxy to support MS/TP slave-only devices
• Client/Server gateway for remapping BACnet objects
• Direct import of CSV files for faster point mapping
• Read/Write any standard BACnet objects as a Gateway
    • Up to 5,000 objects
    • Analog, Binary, Multi-State object types
    • Input, Output, Value objects
• Commandable BACnet objects implement priority array
• BBMD, COV support
• SNMP v1, v2c Get/Set access to all data points
• SNMP v1, v2c table walker
• SNMP v1, v2c trap receiver
• SNMP v1, v2c trap generation, user programmable criteria
• Up to 1,000 MIB variables
• Map any BACnet object to a MIB variable
• Auto-Build MIB on command
• Hardened EIA-485 transceiver for BACnet MS/TP
• 10/100BaseT Ethernet for BACnet IP and SNMP
• Configure via secure web pages with password protection
    • TLS 1.2
    • RSA-1024/SHA-256 self-generated certificates
    • Supports externally generated certificates
• Flash file system with XML configuration files
• Field upgradeable firmware
• Includes “10X” file capacity
• Powered by 12-24V DC/AC 50/60 Hz
• Power Consumption: 0.1A @ 24VDC
• Panel mount, 70mm H x 131mm W x 38mm D
• Pluggable screw terminal block for power & RTU network
• Operating temperature -40°C to +85°C
• Humidity 5% to 90% non-condensing
• FCC Class A, CE Mark


Maximum Object Counts and System Capacities for MX-73-V2C

• MX-73-V2C Object Pool allows up to 5,000 BACnet objects. The object pool may be allocated among the following object types, with a minimum of 1 per object type: Analog Input, Analog Output, Analog Value, Binary Input, Binary Output, Binary Value, Multi-state Input, Multi-state Output, Multi-state Value.

• Maximum 1024 states for Multi-state objects with state text, actual number of objects/states supported varies by resource usage per object.

• MX-73-V2C allows user allocation of memory resources. Memory capacity will not support maximum counts of everything possible, but maximum count limits are set high so that you can allocate resources where you need them.

• Maximum BACnet object count 5000
• Maximum BACnet IP device count 200
• BACnet IP Client read map count 5000
• BACnet IP Client write map count 5000

• Maximum MIB Size: 1000 Variables
• Maximum SNMP Client device count 200
• SNMP Client read map count 1000
• SNMP Client write map count 1000
