Control Solutions’ Model VP6-1430 ValuPoint® Smart I/O for BACnet MS/TP is a BACnet Application Specific Controller (B-ASC) with 14 I/O points and programmable control. The VP6-1430 features 12 universal inputs that may be configured as analog or discrete, and 2 Form A relay outputs. The ValuPoint VP6-1430 is useful as slave I/O or as a small soft PLC.

The VP6-1430 is designed to be a building block in a distributed control system where controllers communicate peer to peer via BACnet MS/TP. Each ValuPoint controller can access BACnet objects in other BACnet devices, both ValuPoint controllers and other manufacturer’s devices. Remote objects are mapped to local objects that mirror the value of the remote object.

Feature Highlights
• 12 Analog/Universal Inputs, 12-bit, Configurable as 0-10VDC, Thermistor, Discrete, or Pulse Count
• 2 Discrete Outputs, Form A Dry Contact Relay, 2A @ 120VAC
• BACnet MS/TP 9600 to 76,800 Baud
• Isolated RS-485 Port
• Graphical Programming with i.CanDrawIt®

VP6-1430 Smart I/O for BACnet MS/TP

ValuPoint® VP6-1430 Smart I/O for BACnet MS/TP

Order code: VP6-1430
Retail price: $689.00

 Buy VP6-1430 Online Now!

 Save Even More
Sign Up for Wholesale



Control Solutions’ Model VP6-1430 ValuPoint® Smart I/O for BACnet MS/TP is a BACnet Application Specific Controller (B-ASC) that includes programmable control. The VP6-1430 features 12 universal inputs that may be configured as analog or discrete, and 2 Form A relay outputs. The ValuPoint VP6-1430 is useful as slave I/O or as a small soft PLC.

The ValuPoint® series of controllers is designed to be a building block in a distributed control system where controllers communicate peer to peer via BACnet MS/TP. Each ValuPoint controller can access BACnet objects in other BACnet devices, both ValuPoint controllers and other manufacturer’s devices. Remote objects are mapped to local objects that mirror the value of the remote object. Access to the remote objects is via periodic polling. Other devices can subscribe to COV’s in the ValuPoint controller.

All of the ValuPoint features available to local objects are also available to the remote mapped objects. This means the remote objects can be incorporated into the local i.CanDrawIt® program.

The user has the ability to assign object allocation as part of setup of the controller. Resources are allocated from a common pool, and the user has the ability to decrease the number of one type of object in order to increase the number of another type. Maximum total object count is 500 objects. Object types include analog, binary, and multi-state variations of input, commandable output, and writeable value.

ValuPoint® support software, available for download at no cost, includes the VP6-1430 configuration tool, i.CanDrawIt graphical programming tool, and the pliWrite line programming tool. Both programming tools support both simulated execution and live debug. The tools connect via a BACnet IP to MS/TP router, or via Control Solutions’ MTX002 USB to MS/TP adapter.

The VP6-1430 configuration tool connects to the MS/TP network using the MTX002 MS/TP to USB adapter (if not using a BACnet IP router). This intelligent adapter plugs into your PC's USB port, and offloads the MS/TP token passing from the PC to make it more reliable. The MTX002 allows you to connect your PC to an MS/TP network running at 76800 baud, something not possible with a generic RS-485 port adapter.

The MTX002 functions as an MS/TP device itself. The combination of the MTX002 and configuration tool running on your PC will appear on the network as a discoverable BACnet device. The diagnostic pages in the configuration tool can be used to read and write any objects in any MS/TP device on the network. The configuration pages provide templates for reading and writing the multiple properties per BACnet object that define its configuration or client/server mapping. All configuration parameters exist as properties of BACnet objects which are accessible to any BACnet client. The Control Solutions configuration tool simpy provides a user friendly template for accessing those properties.

Screen shot of configuration tool for VP4-0630 Programmable I/O for BACnet MS/TP

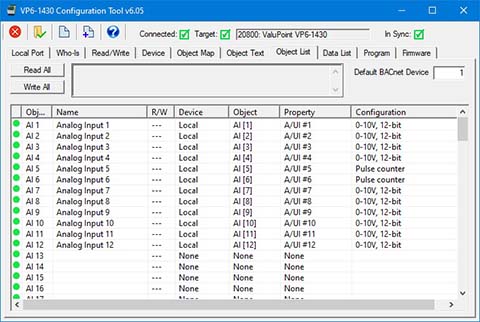

The ValuPoint VP6-1430 Configuration Tool is a user friendly configuration tool that provides simple templates for assigning the BACnet object properties that configure the device. Connect the ValuPoint to your laptop via a USB to MS/TP adapter (MTX002) or via a BACnet IP router.

Screen shot of i.CanDrawIt graphical programming tool used to create control programs for the VP4-0630 Programmable I/O for BACnet MS/TP.

i.CanDrawIt® is included at no additional cost with every ValuPoint® controller from Control Solutions. i.CanDrawIt® works just like an electrical schematic CAD program, except you draw control programs that look like circuits. The resulting software will function like the circuit you draw. i.CanDrawIt® includes visual program simulation as well as visual live debugging where supported by the target device. Set breakpoints or step through the program one visual function block at a time. Update variables and I/O objects in simulation or live.



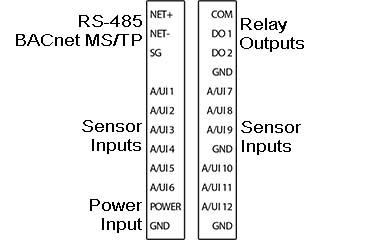

VP6-1430 Hardware Features

• 12 Analog/universal inputs
    • 0-10VDC, thermistor, discrete, dry contact, pulse count
    • 0.1% reference, 12-bit A/D resolution
    • Software selectable input types
    • Non-volatile totalizing count inputs
    (to 2Hz on all channels, to 1kHz on 4 channels)
• 2 Discrete outputs
    • Form A relay
    • 2A @ 120VAC
    • 2A @ 30VDC
• BACnet MS/TP at 9600 to 76800 baud
• Isolated RS-485 port
• 512KB non-volatile EEPROM configuration file capacity
• 64K Flash for user program
• ARM 32-bit processor, 1MB Flash, 256K RAM
• Powered by 18-30VDC or 24VAC 50/60 Hz Class 2, 0.3A max
• DIN rail mounting, 100mm H x 105mm W x 60mm D
• LED indicators for power, RS-485 RX/TX & error
• Pluggable screw terminal blocks
• -40C to +80C, 5%-95% RH non-condensing
• Certifications: FCC, CE, UL 916

VP6-1430 Software Features

• Implements B-ASC BACnet Standard Profile
• Freely programmable - i.CanDrawIt® graphical programming
• COV Subscription support
• BACnet client for interface to other slave devices
• I/O points and undedicated BACnet objects
    • Input objects: AI, BI, MSI
    • Commandable output objects: AO, BO, MSO
    • Writeable value objects: AV, BV, MSV
• Configurable object allocation, up to 500 objects
