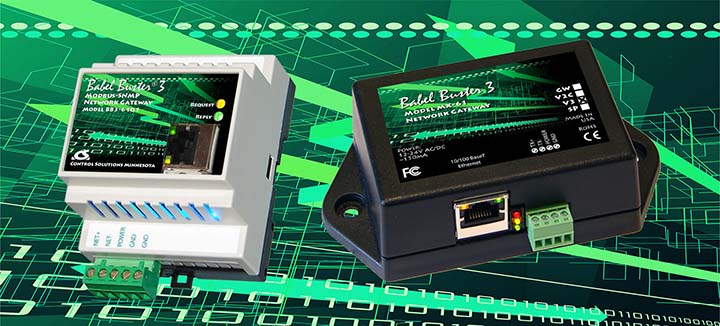

Babel Buster 3 Modbus to SNMP Gateways from Control Solutions Minnesota

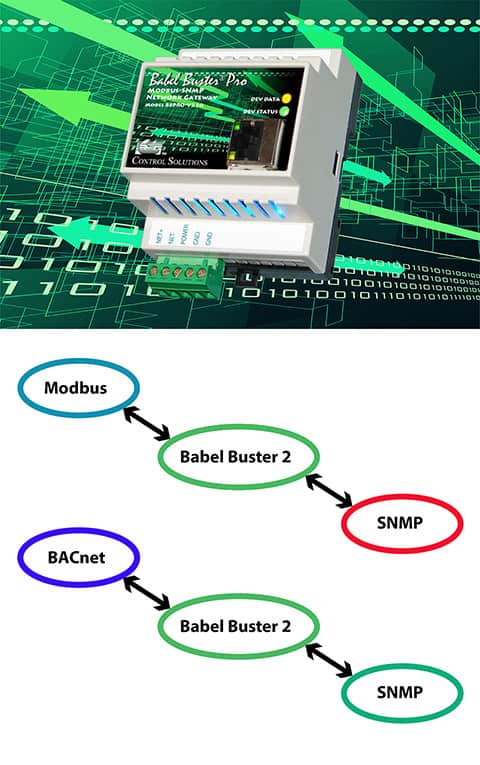

A common application of an SNMP gateway is to connect Modbus or BACnet devices to an SNMP network to allow SNMP management of those Modbus or BACnet devices. The Babel Buster gateway will provide access to the Modbus or BACnet data via its internal SNMP MIB. The SNMP manager can Get data read from Modbus registers or BACnet objects. The SNMP manager can also Set to write to Modbus registers or BACnet objects.

The other common application of an SNMP gateway is to connect SNMP devices, most often power related equipment such as UPS systems, to Modbus or BACnet networks. This allows PLCs with Modbus RTU or Modbus TCP to access power related data from the SNMP device. This also allows building management systems (BMS) using BACnet to access power related data from the SNMP device.

Babel Buster SNMP gateways provide SNMP protocol conversion enabling SNMP management of non-SNMP devices that use Modbus or BACnet protocols. The Babel Buster SNMP gateway translates Modbus registers and BACnet object properties to variables each having a unique OID in the gateway’s MIB. By doing an SNMP Get, you read a Modbus register or BACnet object. By doing an SNMP Set, you write a Modbus register or BACnet object. The gateways can also be configured to generate SNMP Traps if the value in a Modbus register or BACnet object exceeds a user defined threshold.

Babel Buster SNMP gateways also allow BACnet or Modbus devices to access SNMP devices. When used in this manner, the gateway will poll OIDS (variables) in the MIBs of other SNMP devices, and copy their data to objects or registers in the Babel Buster gateway. When functioning as a slave or server, other Modbus masters or BACnet clients can query the Babel Buster to read the SNMP data. Modbus masters or BACnet clients can write to registers or objects in the gateway to cause an SNMP Set to be executed to write that data to the SNMP device. The Babel Buster gateway will also function as a Modbus master or BACnet client proactively sending SNMP data to other Modbus or BACnet  slave devices, or proactively retrieving data to be sent to SNMP using a Set.

The Babel Buster Pro series includes a very flexible SNMP trap receiver. Traps received by the gateway are processed according to simple rule templates or custom programming in Script Basic created by the user. The resulting trap data is placed into Modbus registers, allowing PLCs to detect trap conditions.

Babel Buster®... The SNMP Gateway Brand Everybody Remembers.

SNMPv3 Gateways

Connect Modbus to SNMPv3

Babel Buster BB3-6101-V3 Modbus to SNMP Gateway

Babel Buster BB3-6101-V3

Control Solutions’ Babel Buster BB3-6101-V3 is a Modbus to SNMP Gateway used to connect Modbus RTU or Modbus TCP devices to your SNMP network. The SNMP manager can use SNMP Get to retrieve contents of any mapped Modbus register. In addition, the BB3-6101 uses threshold rule templates to continuously monitor Modbus data and generate SNMP Traps upon sensing of “alarm” conditions.

The BB3-6101-V3 supports SNMPv3 as well as SNMPv2 and SNMPv1. User credentials for SNMPv3 access are entered via the built-in secure web user interface.

Feature Highlights
• Connect Modbus RTU, TCP Devices to SNMP v1, v2c, v3
• Higher point count, up to 1,000 MIB variables typical
• User defined register map for Modbus
• CSV import of register maps for client/master configuration
• Modbus RTU RS-485 Master or Slave
• Modbus TCP Client and Server
• SNMP Get/Set access to all data points
• SNMP trap generation, user programmable criteria
• Configured via secure (https) internal web server
• Supports IPv4 and IPv6
• FCC, CE Mark, UL 916 Listed
• Software Included, No Drivers to Buy

Babel Buster BB4-8422 SNMPv3 to Modbus Gateway

Babel Buster BB4-8422

The Babel Buster® BB4-8422 Multi-Protocol Gateway is well suited as an SNMP Gateway with support for SNMPv3 as well as SNMPv1 and SNMPv2. The SNMP Gateway’s MIB is fully customizable by the user. The BB4-8422 includes an SNMP Client to Get and Set MIB variables in other devices. The BB4-8422 SNMP Gateway can both send and receive SNMP Traps.

The Babel Buster BB4-8422 is a Modbus TCP Gateway with both client and server. The Babel Buster BB4-8422 is a Modbus RTU Gateway with two RTU channels each independently configurable as either master or slave. All Modbus register types are supported. Modbus support is included for 32-bit and 64-bit data, and character strings.

Data is shared across all protocols with protocol agnostic data objects at the core of the system. Modbus devices can be accessed by SNMP. SNMP data can be accessed by Modbus. Data flow can go in both directions between any given protocols.

Feature Highlights
• Dual Ethernet Ports
• Dual, Isolated RS-485 Ports
• Faster, More Memory
• Secure, SSL Support
• SNMPv3 Support
• Modbus TCP and RTU client and server
• USB Flash Drive
• Slim DIN Rail Package
• Built-in Configuration Tools
• Drivers Included
• Free Software Upgrades for Life
